Cardboard Laminating Machine

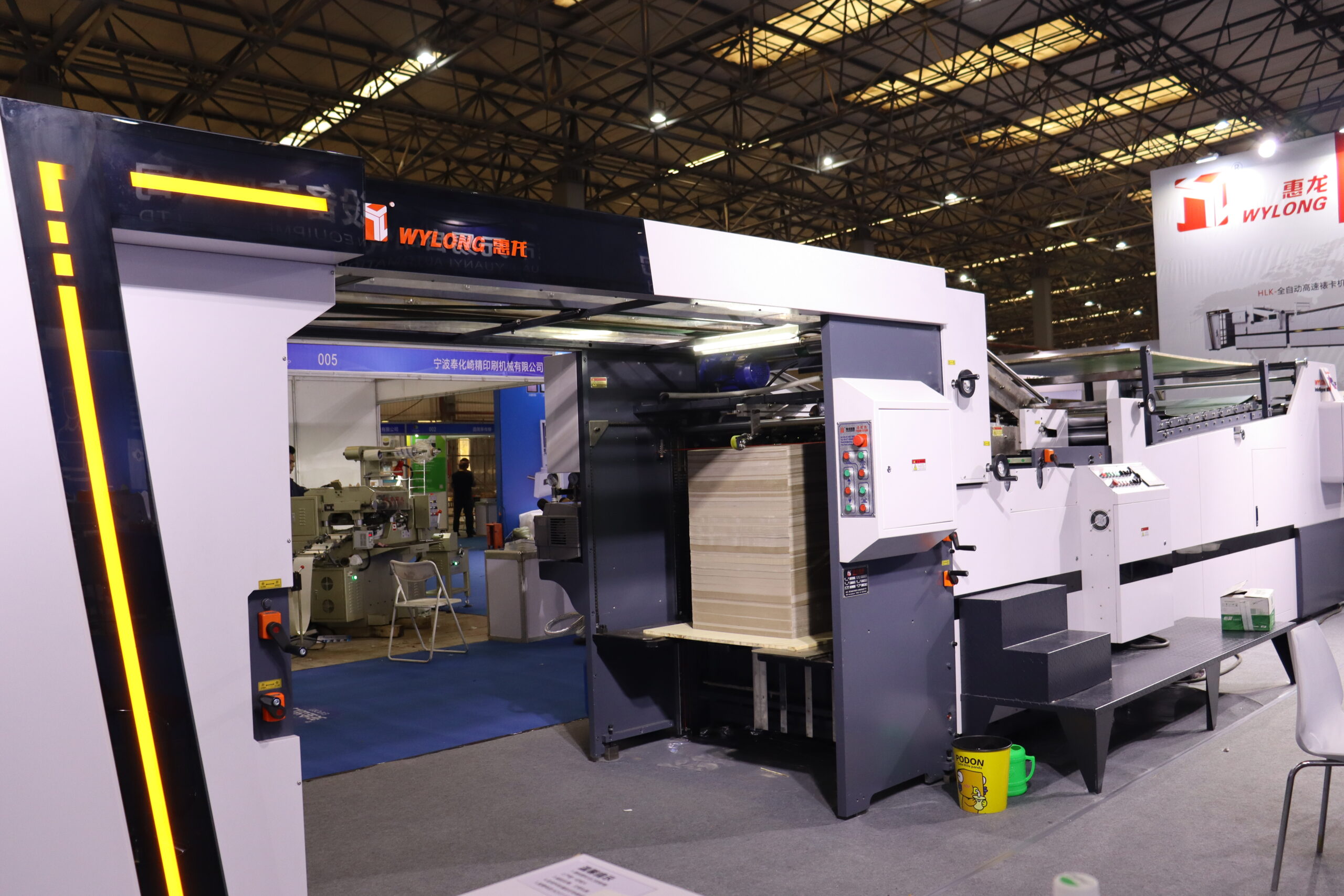

HLK Series Fully Automatic High-speed Cardboard Laminating Machine

The HLK-SERIES Fully Automatic High Speed Cardboard Laminating Machine boasts a range of advanced features designed for optimal performance in cardboard lamination. It includes an originality paper dynamic calibration synchronization system for precise alignment and consistency. The double-notch E-shaped design allows for seamless pushing of laminated cardboard using a trolley. The front suction top feed paper feeding system facilitates easy size changeovers without manual adjustments, enhancing operational efficiency. The shake loose type take-up system effectively separates overlapping products and pushes them for a neat and smooth take-up. Rotation speed and pressing length are electrically adjustable, offering convenient conversion for various tasks. The PLC computer control system provides automatic detection of operation conditions, identifies abnormalities, monitors maintenance needs, and records work data. Additionally, the high precision coating system with automatic liquid level control accurately adjusts coating amounts according to cardboard demand, ensuring uniform gluing. This comprehensive suite of features makes the HLK-SERIES an ideal choice for high-speed, high-precision cardboard laminating applications.

Technical Parameters
Product Information

The HLK-SERIES Fully Automatic High Speed Cardboard Laminating Machine is engineered for versatile lamination applications, including tissue paper, gray paper, and coated paper. This machine excels in meeting the specialized needs for double-sided printing and laminating thin and thick paper, offering exceptional precision for high precision lamination and addressing issues such as deformation before and after processing. It is ideal for various packaging products such as wine boxes, shoeboxes, tags, elevator panels, toys, and gift boxes. The HLK Series ensures smoothness, high accuracy, and high hardness in the finished laminated products, making it a top choice for exquisite packaging solutions.

Technical Parameters

Model	HLK-800	HLK-1207	HLK-1210	HLK-1410
Max Sheet Size	860*680mm	1200*700mm	1200*1000mm	1350*1000mm
Min Sheet Size	350*280mm	500*280mm	500*400mm	500*280mm
Power	220/380V 12kw	220/380V 12kw	220/380V 12kw	220/380V 12kw
Thickness Of Upper Paper	120-900g/㎡	120-1000g/㎡	120-1000g/㎡	120-1000g/㎡
Thickness Of Bottom Paper	180-800g/㎡	200-1500g/㎡	200-1500g/㎡	200-1500g/㎡
Laminate Error	±0.5mm	±0.5mm	±0.5mm	±0.5mm
Operation Space	3m*12m	3m*12m	3m*12m	3m*12m
Max. Speed	100pcs/min	100-150pcs/min	100-150pcs/min	100-150pcs/min
Weight	6500kg	7000kg	7000kg	7500kg
Dimension	91.92.2m	91.92.2m	91.92.2m	91.92.4m

Machine Components:

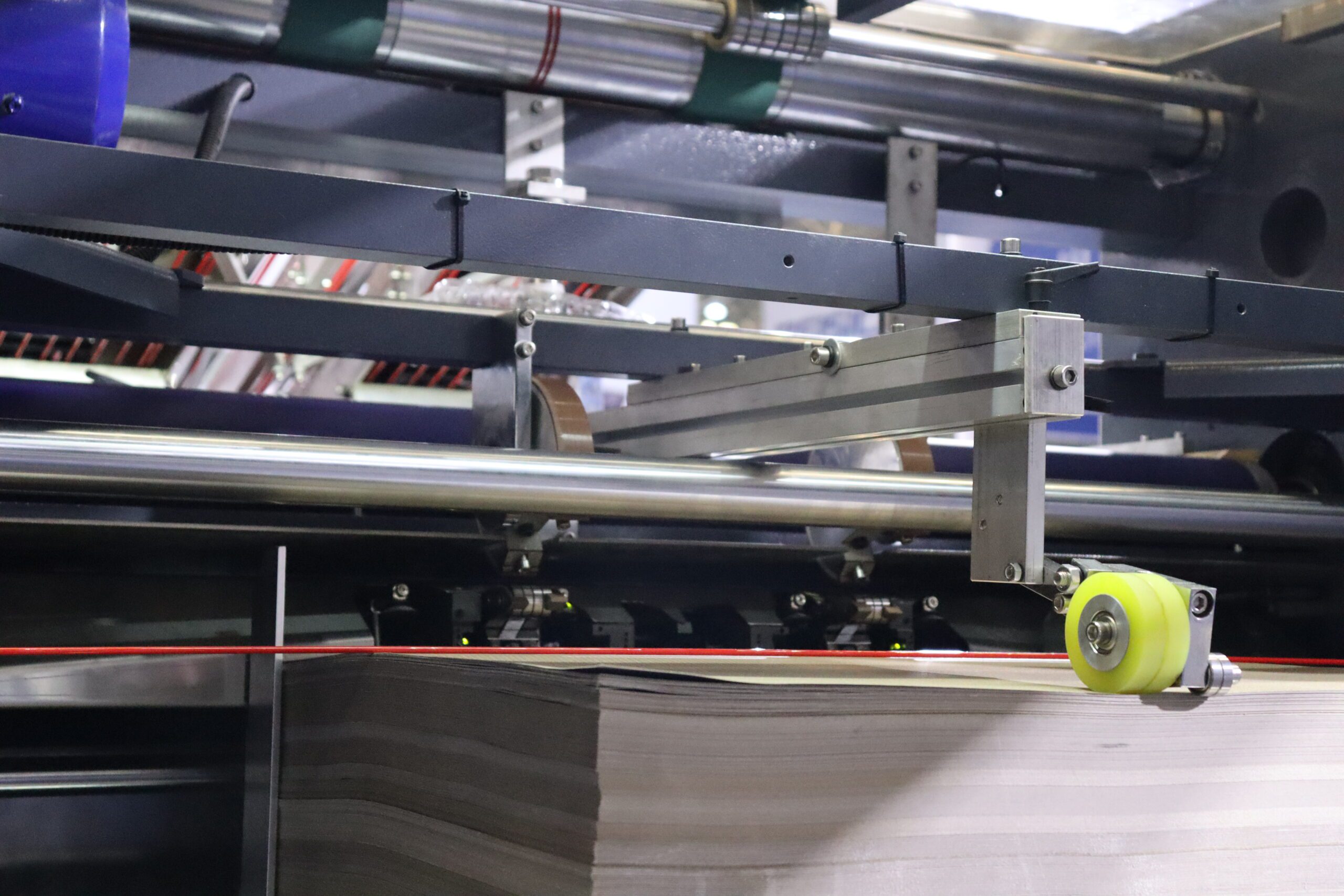

	Paper feeding system: The HLK Series High Precision Automatic Laminating Machine features a top suction paper feeding system that ensures smooth and efficient paper handling. This system includes size conversion capabilities that do not require manual adjustments, making it easy to operate and adaptable to various paper sizes. This advanced technology enhances the machine’s usability and efficiency, providing consistent performance and ease of use for high-precision lamination tasks.
	Pressure system： Our Laminating Machine utilizes a double gap E-type design that allows for efficient lamination of paper using a pallet truck. This innovative design facilitates the easy handling and positioning of laminated paper, streamlining the workflow and improving operational efficiency. The double gap E-type design enhances the machine’s versatility, making it suitable for various types of paper and packaging needs.

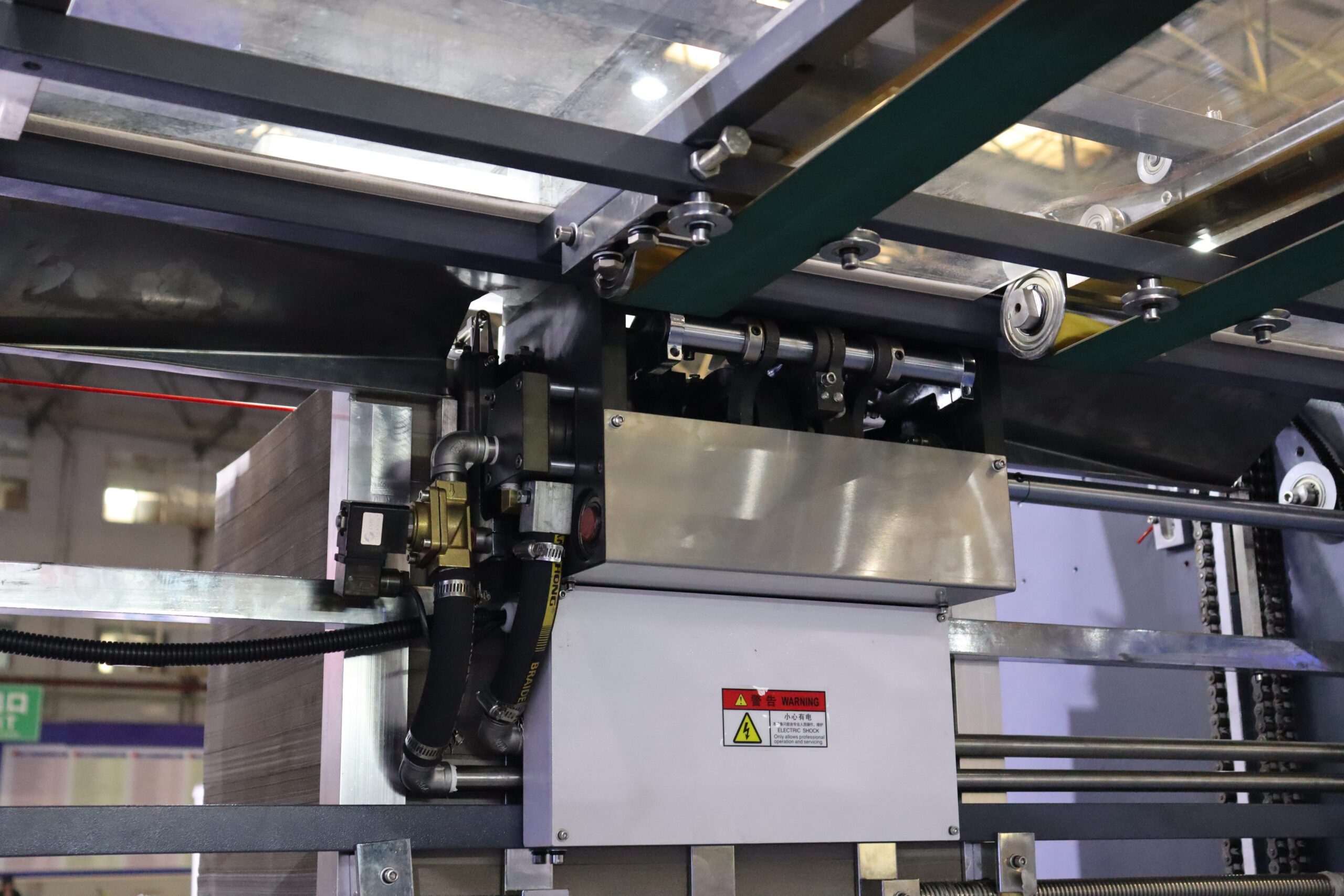

	Air supply system: Our Laminating Machine features two German Becker air pumps that provide a stable air source for both the upper and lower feeders. This reliable air supply system ensures consistent and efficient operation, enhancing the machine’s performance and improving the feeding process. The use of high-quality German Becker air pumps contributes significantly to the overall stability and effectiveness of the high precision laminating machine, making it ideal for high-demand lamination tasks.
	Coating system: Our machine is equipped with a high precision coating system featuring automatic liquid level control. This advanced system accurately adjusts the coating volume according to specific requirements, ensuring uniform application and optimal performance. The precision coating system enhances the machine’s ability to deliver consistent, high-quality results in laminating tasks.
	Electrical system: The HLK Series High Precision Automatic Laminating Machine is equipped with an advanced PLC computer control system that automatically detects operation status, identifies abnormal situations, monitors maintenance needs, and stores detailed work records. This sophisticated control system ensures optimal performance by providing real-time diagnostics and comprehensive oversight, enhancing the machine’s reliability and efficiency for high-precision lamination tasks.
