Flute Lamination Machine,Full Automatic

Fully Automatic Intelligent Flute Laminating Machine

The HGL-SERIES Flute Lamination Machine offers impressive capabilities, processing up to 12,000 sheets per hour. This machine features full automatic intelligent automation with an automatic paper size adjustment system for seamless transitions. The curve speed positioning ensures high accuracy at high speeds, while intermittent positioning prevents paper slipping. The machine includes an automatic tracking system for both base and surface paper, along with face paper left and right positioning for comprehensive deviation correction, maintaining flawless alignment and efficiency. This advanced technology enhances workflow, reduces manual intervention, and optimizes productivity in high-speed lamination operations.

Technical Parameters
Product Information

The HGL-SERIES Flute Lamination Machine is a fully automatic, intelligent, high-speed, and high-precision solution, capable of processing up to 12,000 sheets per hour. This advanced equipment is primarily used for laminating printing paper and flute paper, making it ideal for producing color boxes and cartons with high flatness and precision. It is perfect for outer packaging products, ensuring exceptional quality and efficiency in high-volume production environments.

Technical Parameters

Model	HLG-1480G	HLG-1680G
Max. Sheet(wxl)	1450x1450mm	1650x1650mm
Min. Sheet(wx1)	450x350mm	450x350mm
Thickness of upper paper	150-600g/㎡	150-600g/㎡
Thickness of bottom paper	Thicknesss 10mm A-F corrugated paper, over 300g paper
Machine speed	12000P/H	12000P/H
Accuracy	±1mm	±1mm
Machine space	157000x2200x2600mm	161000x2400x2600mm
Weights	7000kg	7800kg
Power Weights	22kw/380v	26kw/380v

Product Features & Functions

Up to 12000 per hour
Fully Automatic Intelligent Machine
Automatic paper size adjustment
Curve speed positioning ensures accuracy to the maximum
Intermittent positioning ensures accuracy by avoiding slipping
Automatic tracking system of base paper and surface paper
Face paper left and right positioning of the whole deviation correction
Intelligent detection of the paper length
Intelligent fault display alarm system
Smart Glue Supply Recycling System
Intelligent cleaning water circulation system
Base paper bending and compression system
Base paper air absorption size adjustment device
American MAC element open and close air absorption
Advanced electrical control system
Face paper servo paper delivery system
I-type pre-push paper system
Full mesh grain glue roller device
Anti-dumping device
The surface paper adopts a non-free paper delivery device

Machine Components:

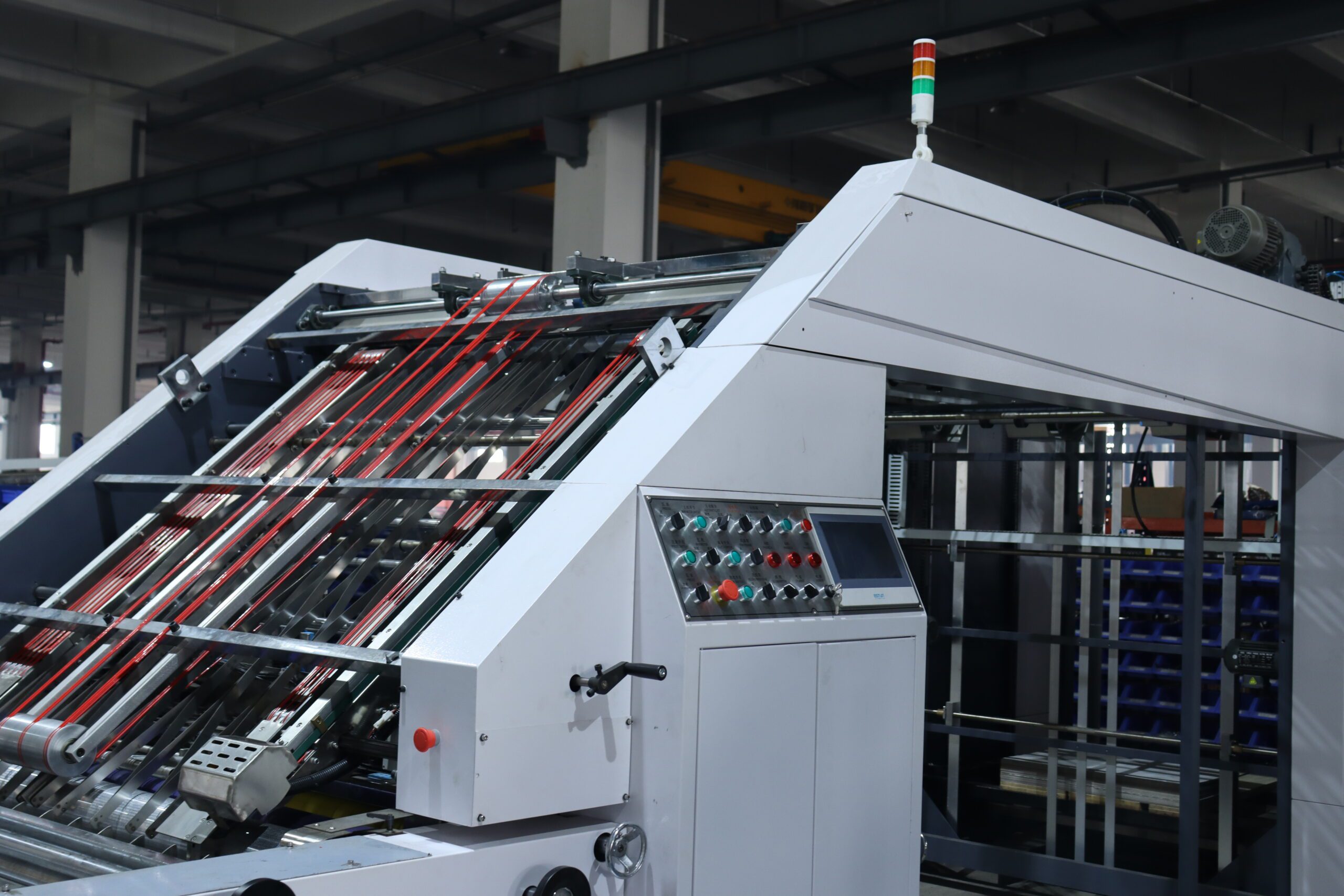

	Feeder system: This advanced equipment, equipped with a high-speed automatic special feeder head, allows the paper-lifting nozzle to freely adjust the paper-lifting angle, and the paper-feeding nozzle to adjust the paper-feeding angle. This ensures high-speed and stable paper feeding for both thick and thin paper. Primarily used for laminating printing paper and flute paper, it is ideal for producing color boxes and cartons with high flatness and precision, making it perfect for outer packaging products.

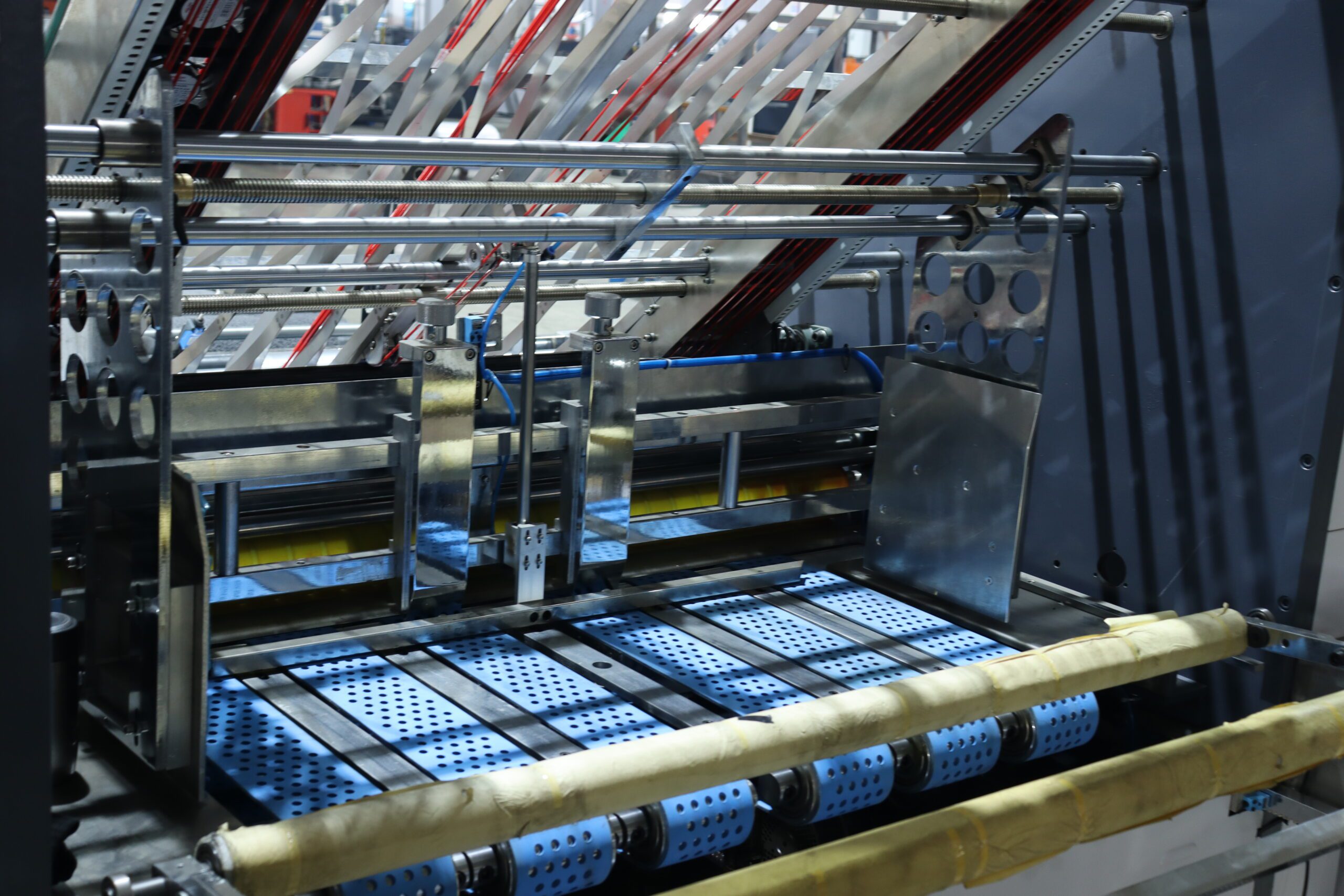

	Bottom paper system: It adopts an imported servo motor control system and features a Japan Nita suction belt with variable frequency adjustment of suction power and belt water roller cleaning. This patented technology ensures that corrugated paper and cardboard are smoothly discharged, making the operation simple and efficient. Primarily used for laminating printing paper and flute paper, it is ideal for producing color boxes and cartons with high flatness and precision, making it perfect for outer packaging products.
	Leading edge feeding system: The leading edge feeding mechanism is suitable for handling large-sized, thick cardboard, enhancing its versatility. Ideal for laminating printing paper and flute paper, it excels in producing color boxes and cartons with high flatness and precision for outer packaging products.
	Transmission system: Our Flute Lamination Machine features imported double-sided tooth synchronous belt transmission with a precision tensioning device. This advanced system ensures accurate, stable, and low-noise operation, enhancing overall machine performance. The incorporation of this technology guarantees reliable and efficient transmission, making it an ideal choice for high-speed lamination processes.
	Positioning system: Our Flute Lamination Machine employs multiple sets of photoelectric sensors to precisely sense the relative position of the backing paper. This system controls the servo motors on both sides of the front paper to perform independent compensation actions, ensuring that the front paper and backing paper are accurately aligned and attached. This advanced feature enhances the accuracy and quality of the lamination process, making the machine ideal for high-precision applications.
