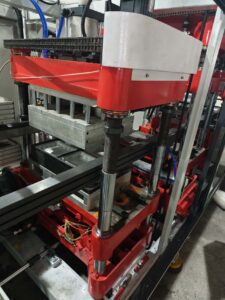

Forming Station

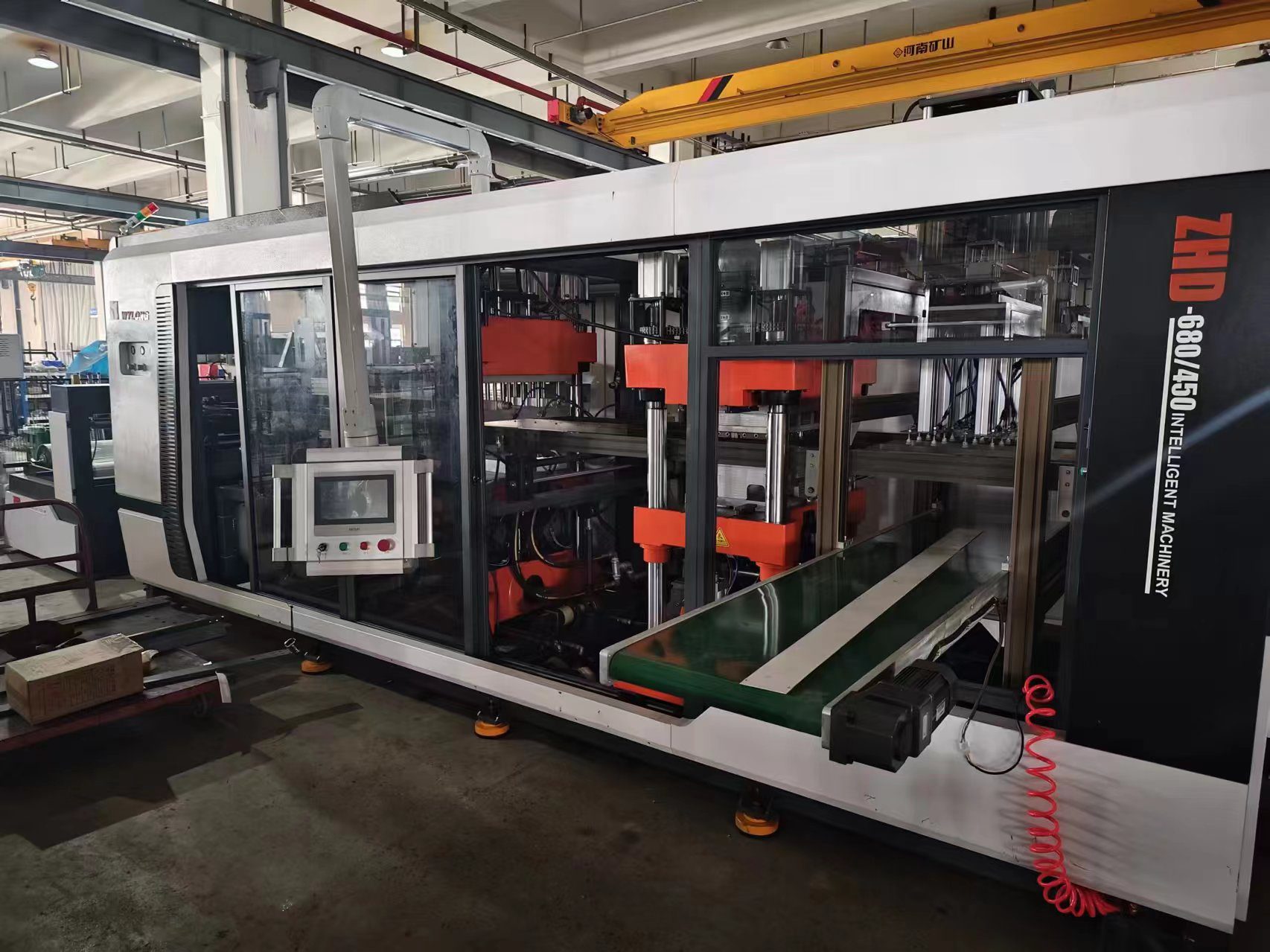

The forming station is the first critical stage in the Multi Station Thermoforming Machine, located immediately after the oven.

Once the sheet is heated by the oven, it enters this station, where it is expertly formed into the shape of the mold impression through precise stretch and air compression created between the molds.

This meticulous forming process ensures the production of high-quality, accurately shaped products, significantly enhancing the efficiency and performance of the multi station thermoforming machine.

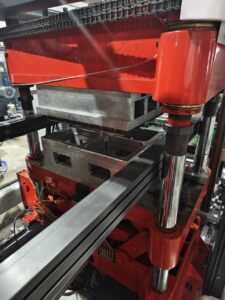

Cutting Station

The cutting station, either the second or third station in the Multi Station Thermoforming Machine, utilizes a kick station in special cases.

This station ensures high accuracy and speed in cutting the molded sheet, enhancing the precision and efficiency of the multi station thermoforming machine for optimal production performance.

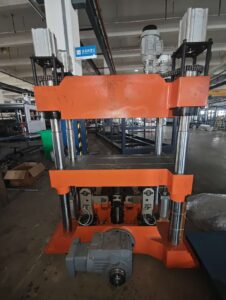

Pillar Servo Construction

Our pillar offers superior product quality across various shapes, including round, rectangular, oval, and square, even for larger sizes.

This mechanism significantly increases the rate of finished products and ensures more stable operation, making it an excellent choice for high-efficiency production.

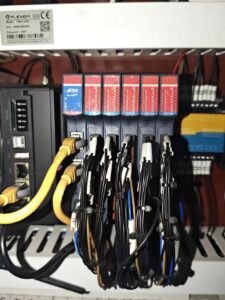

PLC

Our thermoforming machine, features a Trio PLC according to standard design, ensuring the stability, high efficiency, and low failure rate of the entire machine.

This advanced system guarantees consistent and reliable operation, making it an ideal choice for high-precision production needs.

Human Machine Interface

 Our thermoforming machine, is equipped with a FLEXEM HMI, known for its advanced industrial grade and high durability.

This state-of-the-art HMI enhances user interaction, ensuring efficient and reliable operation for all production needs..

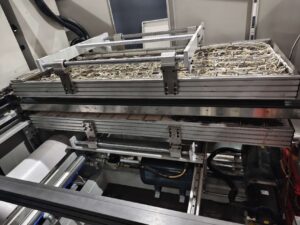

Oven

Our system boasts seven times the maximum forming area, utilizing advanced little infrared ceramic tile heating for more uniform results.

Constructed with 304 stainless steel for durability, it features Dongtai Tianbao heaters controlled by an intelligent temperature controller for precise temperature management.

The oven structure adopts a pneumatic drawer design for easy access, while safety measures include manual blowing cooling to prevent sheet fall, ensuring safe and efficient operation.

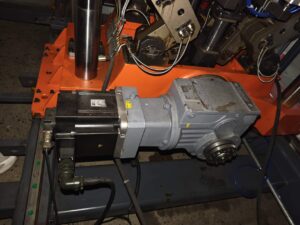

Servo

Our machine is equipped with Delta and Estun Servo Motors, ensuring high accuracy and production efficiency.

These reliable servo motors have been in use for the past 10 years without any errors, demonstrating their exceptional durability and performance in industrial applications.

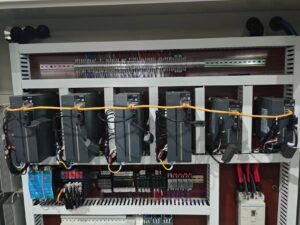

Servo Drive

Our thermoforming machine, is equipped with Estun Servo Drives, renowned for their high accuracy and production efficiency.

Having utilized these servo drives for all our thermoforming machines, we have experienced flawless performance with no errors, showcasing their exceptional reliability and consistency in delivering high-quality results.

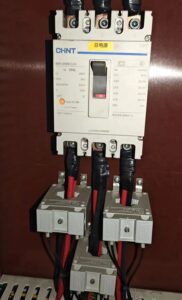

MCB

Our thermoforming machine, features CHINT MCBs (Miniature Circuit Breakers) for reliable electrical protection and safety. CHINT MCBs are known for their durability and high performance, ensuring stable operation and protecting the machine’s electrical systems from faults and overloads.

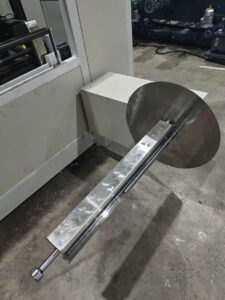

Winding Motor

Our Multi Station Thermoforming Machine features a winding unit with a torque motor to efficiently collect waste sheets and wind them into a roll, which can be conveniently removed at the end of production.

This advanced waste management system enhances operational efficiency and cleanliness, making the multi-station thermoforming machine an ideal choice for high-quality and sustainable production.

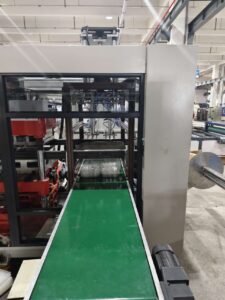

Stacking Section

Our Machine includes a stacking unit equipped with a servo motor and two support cylinders, ensuring smooth and faster operation. This feature enhances the efficiency and reliability of the multi-station thermoforming machine, making it an excellent choice for high-speed, high-quality production.
